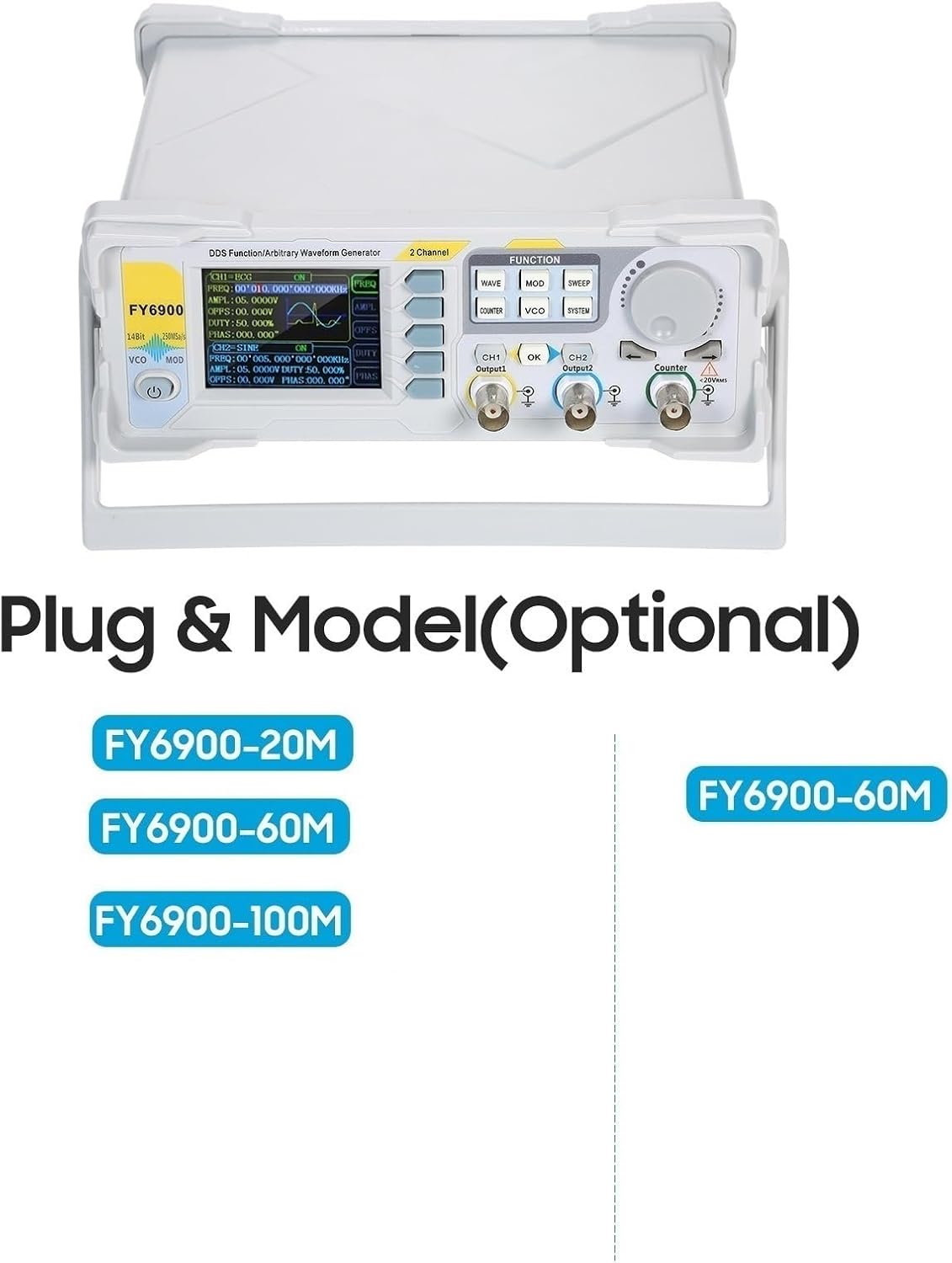

20/60/100MHz Module Digital DDS Signal Generator Waveform Generator Pulse Signal Source 300MSa/s Frequency Meter(6900 100MHz)

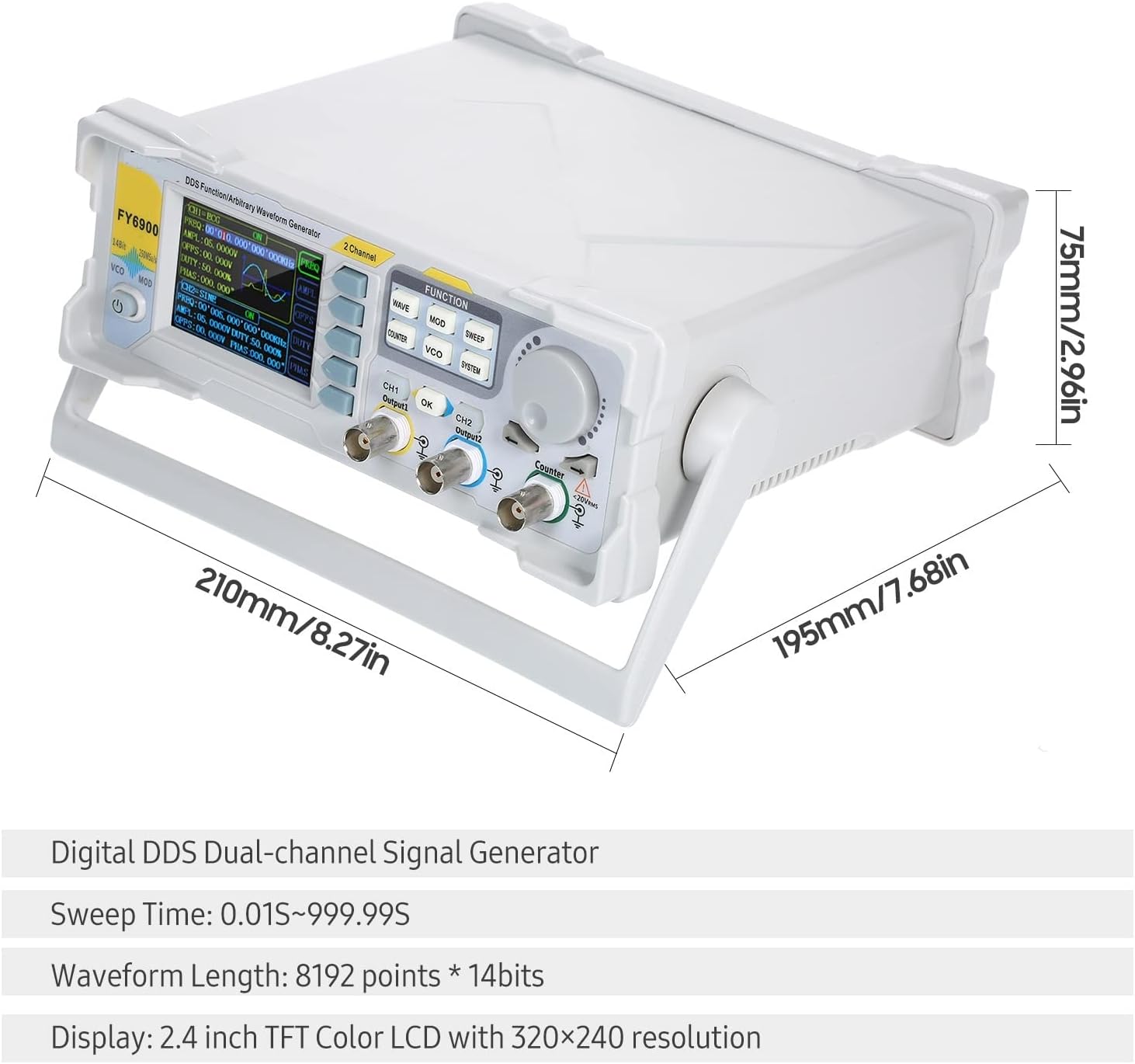

------FY6900------Specification:Material: ABSSine: 0~20MHz(20M), 0~60MHz(60M), 0~100MHz(100M)Sampling Rate: 250MSa/s(20M,60M), 300MSa/s(100M)Output Amplitude Range: 1mV-24Vpp(20M,60M), 1mV-25Vpp(100M)Vertical Resolution: 14 bitsWaveform Length: 8192 points * 14bitsMinimum Pulse Width: 20nsModulation Type: AM, FM, PM, ASK, FSK, PSKDisplay: 2.4 inch (320*240), TFT color displayNon-Volatile Storage: Can store 64 user-defined arbitrary waveforms, (8K 14bits) * 64Power: AC100V~240VItem Size: 210 * 195 * 75mm / 8.27 * 7.68 * 2.96in (L*W*H)Item Weight: 611g / 21.56ozPackage Weight: 1065g / 37.51ozPackage Size: 27 * 21 * 9.5cm / 10.63 * 8.27 * 3.75inPackage List:1 * DDS Signal Generator1 * Power Cable1 * USB Data Cable1 * BNC-BNC Cable2 * BNC-Clip CableFeatures:Various modulation types: AM, FM, PM, ASK, FSK and PSK modulations.Sweep Function: it can sweep 4 properties of signals including frequency, amplitude, offset and duty cycle; It has Linear and Logarithm two sweep types; 0.01S-999.99S sweep time; Up, Down and roundtrip sweep directions.VCO Function (Voltage Control Output): can be achieved by an external input signal: voltage controlling frequency, voltage controlling amplitude, voltage controlling offset, voltage controlling duty cycle and PWM modulations.Burst Output Function: there has Manual Trigger, internal CH2 Trigger, and External Trigger for your options. It can output 1-1048575 pulse trains.Counter Function: it has 2 coupling measure modes including DC coupling and AC coupling. This design can solve inaccuracy problem of AC coupling.Standard dual full functional channels which are equivalent to two independent generators.Channel SYNC Function: support waveform copy and state copy between channels.Support two or more signal generators connected to achieve multi-channel output, the maximum support

• 2.4 inch TFT color LCD with 320*240 resolution, simultaneously display parameters and graphics of CH1 and CH2.
• Adopt the Direct Digital Synthesizer (DDS) technology and provide stable, precise, pure and low distortion signals.
• <200ps.
• The instrument uses 14-bit high-speed D/A converter chip (5Vpp output quantization error is less than 1mV), 300MSa/s sample rate, 14bits vertical resolution.
• Enable to store 64 arbitrary waveform data files, each one of waveform storage depth 8192 points * 14bits; (The longer the waveform storage depth, the more detail the waveform is saved, and the signal details can be restored with high precision.)
