ESP32-P4-Module High-Performance Development Board, Based On ESP32-P4 and ESP32-C6, Supports Wi-Fi 6 and BLE 5, with 7"-DSI-Touch-A (ESP32-P4-Module-DEV-KIT-B)

Introduction This product is a multimedia development board based on ESP32-P4 with integrated ESP32-C6, supports Wi-Fi 6 and Bluetooth 5 wireless connection. It features rich Human-Machine interfaces, including MIPI-CSI (with integrated Image Signal Processor), MIPI-DSI, SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART, TWAI, etc. Additionally, it supports USB OTG 2.0 HS, onboard RJ45 Ethernet port with reserved PoE function header, and onboard 40PIN GPIO header which is compatible with some Raspberry Pi HATs, enabling a wider range of application adaptability. The ESP32-P4 adopts a 400MHz dual-core RISC-V processor and supports up to 32MB PSRAM, featuring USB 2.0, MIPI-CSI/DSI, H.264 encoder, and other peripherals, meeting the needs for low-cost, high-performance, and low-power multimedia development. It also integrates the Digital Signature Peripheral and a dedicated Key Management Unit, ensuring secure data and operations. Specifically designed for high-performance and high-security applications, the ESP32-P4-Module-DEV-KIT meets the requirements of Human-Machine interaction, efficient edge computing, and IO expansion. Display Parameters Model: 7-DSI-TOUCH-A Resolution: 720 × 1280 (H×V) Communication Interface: MIPI 2-lane Brightness: 450cd/m² (supports customization for 1000cd/m² high brightness version) Touch Chip: GT9271 Outline Dimension: 120.24mm × 189.32mm Display area: 88.0mm × 155.0mm Pixel pitch: 0.12075mm × 0.12075mm Contrast ratio: 800:1 Operation temperature: 0℃~60℃ Package Content 1. 7-DSI-TOUCH-A x1 2. ESP32-P4-Module-DEV-KIT x1 3. Screws pack x1 4. USB Type-A dual-plug cable x1 5. USB Type-A to Type-C cable x1 6. 2PIN cable x1 7. DSI cable x1 8. FFC 15PIN cable x1 9. FFC 22PIN cable (2PCS) x1 10. 8Ω 2W speaker x1 11. RPi Camera (B) x1

• High-performance MCU with RISC-V 32-bit dual-core and single-core processors.
• 128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP SRAM, 8 KB TCM.
• Powerful image and voice processing capability. Provides image and voice processing interfaces including JPEG Codec, Pixel Processing Accelerator, Image Signal Processor, H264 encoder.
• 32MB PSRAM in the chip's package, with onboard 16MB Nor Flash.
• Commonly used peripherals such as MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet, SDIO 3.0 TF card slot, microphone, speaker header and RTC battery header, etc.

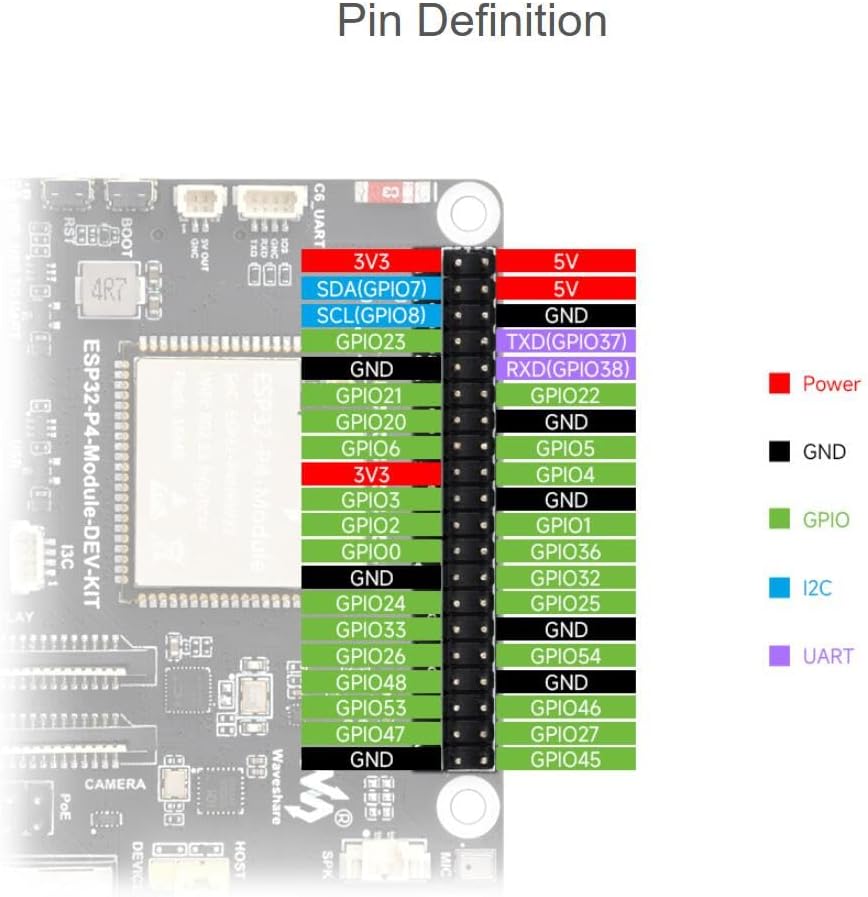

• Adtaping 2*20 GPIO headers with 28 x remaining programmable GPIOs.
• Security features: Secure Boot, Flash Encryption, cryptographic accelerators, and TRNG. Additionally, hardware access protection mechanisms help to enable Access Permission Management and Privilege Separation.
