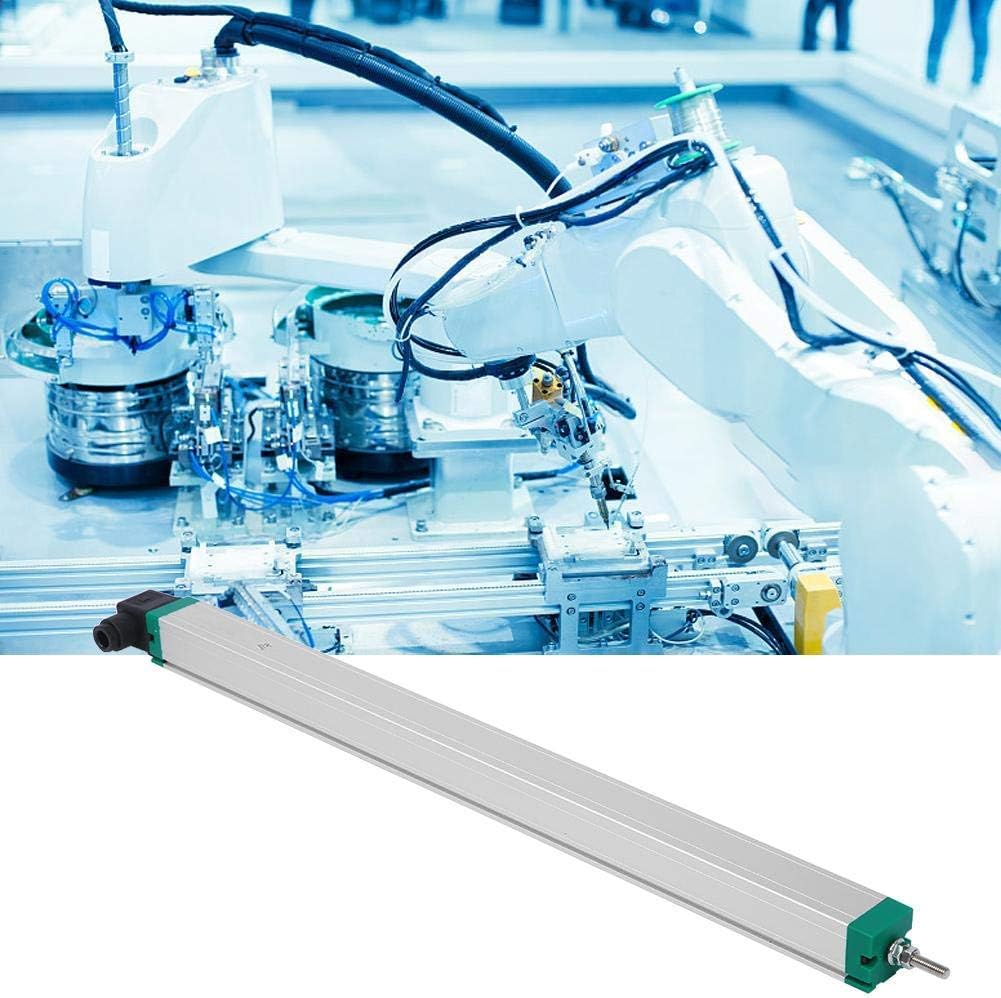

Injection Electronic Ruler Pull Rod Displacement Sensor Stainless Steel Linear Position Sensor Universal Hardware Parts(-450)
Product details
| Management number | 220367824 | Release Date | 2026/05/03 | List Price | $39.54 | Model Number | 220367824 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specification: Item Type: Electronic ruler Product Material: Stainless steel Product Model: -450 / -650 (optional) Electrical Stroke: Range + 3mm Resolution: Infinite uninterrupted analysis Repeatability: 0.01mm Normal Working Current of Sliding Brush: ≤10μA The Maximum Current of Sliding Brush When Causing Fault: 10mA Maximum Allowable Working Voltage: 42V Effective Temperature Coefficient Ratio of Output Voltage to Input Voltage: Usually 5ppm / K Insulation (500VDC, 50Hz): ≥10MΩ Insulation Strength (500VAC, 50Hz): ≤100μA Shell Length (A): Range + 78.5mm Mechanical Stroke (B): Range + 8mm Maximum Load of Pull Rod: 50KG : Horizontal Direction: <10N Vertical Direction: ≤10N Vibration Standard: 5 ... 2000Hz, Amax = 0.8mm, amax = 20g Damper Standard: 50g, 11ms Operating Temperature Range: -60 ... + 150 ℃ Life:> 100 × 10 ^ 6 times Maximum Operating Rate: 10m / S, maximum operating acceleration 10m / s² Level: The highest IP67 (DIN40500 / IEC529) Package List: 1 x Displacement Sensor 1 x Plug 3 x Accessory 4 x Screw
- 【Practical】The electronic ruler adopts plug type, convenient and practical, no noise, with smooth output engineering rod, resolution: Infinite uninterrupted analysis, repeatability: 0.01mm.
- 【Antioxidant Treatment】The injection electronic ruler adopts plug for to resist oxidation, , and durability; the displacement sensor is exquisite workmanship, which can reduce loss.
- 【Good Compatibility】The displacement sensor supports high-definition sound quality, is compatible with all devices, has a wide range of uses, and has strict performance requirements through the processes of many experts.

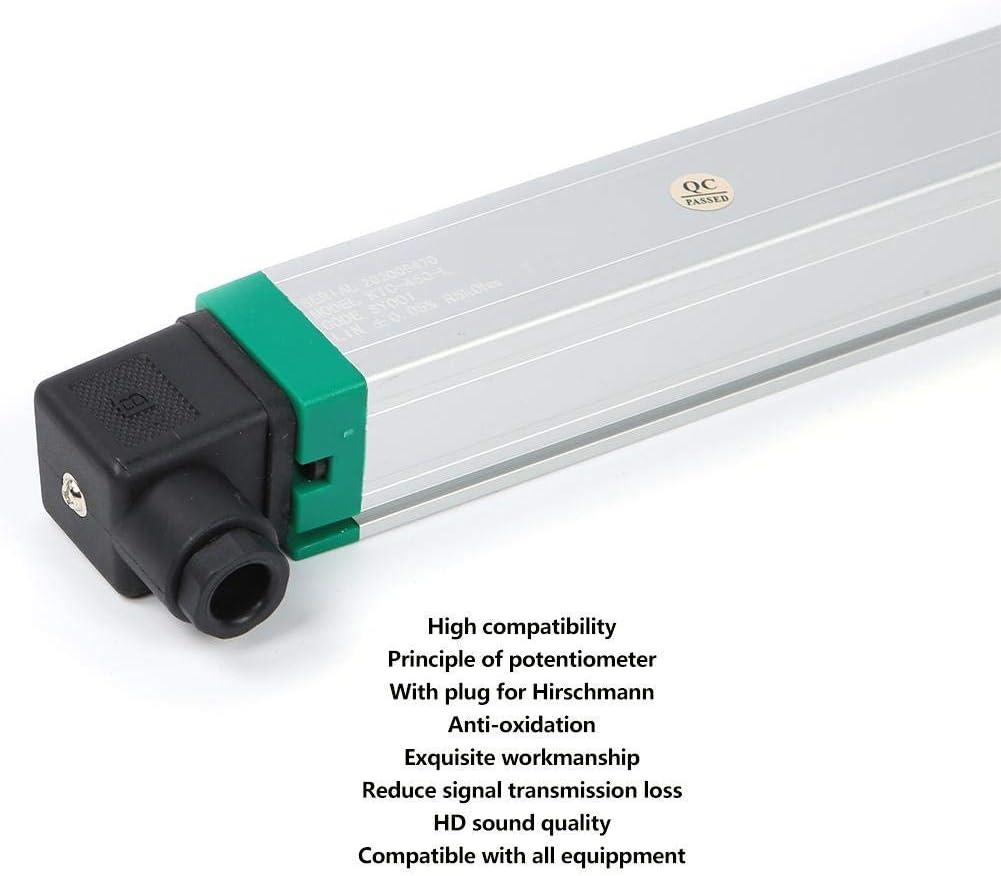

- 【Good Performance】The sensor has high compatibility, adopts the potentiometer principle, and will change with displacement when the given input voltage is , with and .
- 【Product Parameters】The injection machine is made of stainless steel, not easy to , long service life, the maximum load of the rod can reach 50KG, can be widely used according to demand.
| Model | KTC-450 |
|---|---|
| Brand Name | Fafeicy |
| Style Name | Modern |
| Output Type | electrical signal |
| Part Number | Fafeicyhmqw58kxtr-11 |
| Manufacturer | Fafeicy |
| Material Type | Stainless Steel |
| Mounting Type | Plug Mount |
| Current Rating | 10 Microamps |
| Sensing Distance | 3 Millimeters |
| Included Components | inc |
| Measurement Accuracy | 0.01mm |
| Maximum Supply Voltage | 42 Volts |
| Upper Temperature Rating | 150 Degrees Celsius |
