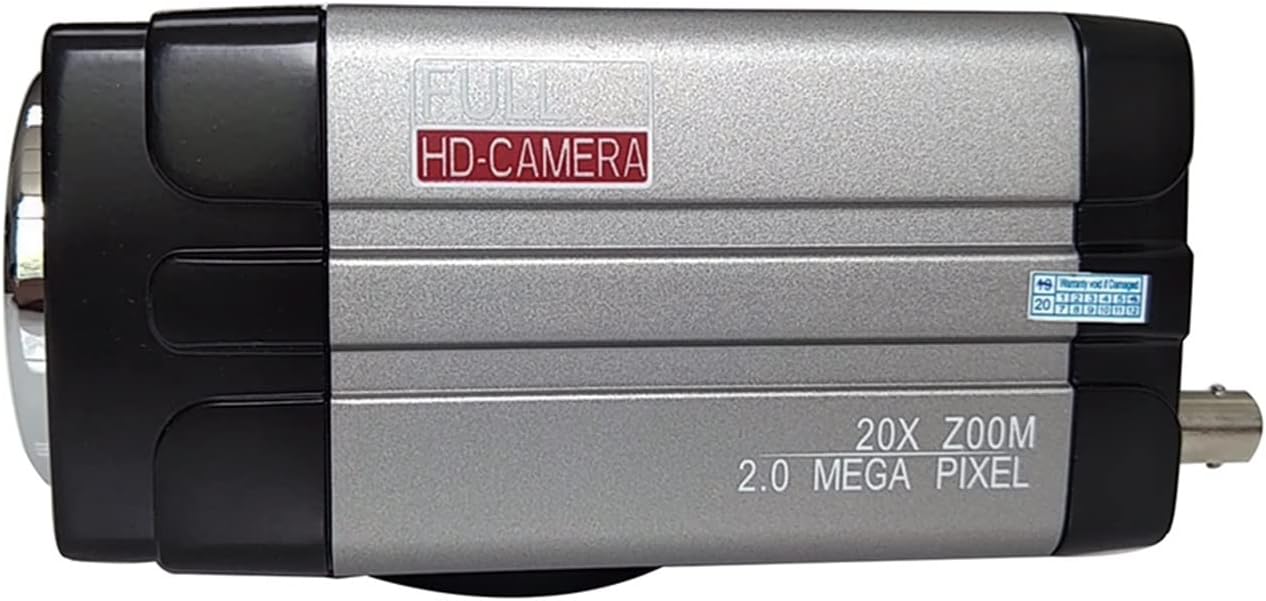

Multi-Function Webcam 2.0Megapixel 1080p 30fps 20X Zoom SDI IP Box Camera Audio Input for Video Conferencing Live Streaming Ultra High Definition (Sensor Size : 1/2.8'')

Model FLA-HD1201T20A Camera Parameter Sensor 1/2.8inch high quality HD CMOS sensor Effective Pixels 16: 9,2.07 megapixel Video Format 1080P30/25 fps Optical Zoom 20X optical zoom, f=5.5~110mm View Angle 2.9°(tele)--55.4°(wide) Aperture F1.6 ~F3.5 Digital Zoom 10X Minimum Illumination 0.5Lux?(F1.8, AGC ON) DNR 2D & 3D DNR White Balance Auto Manual One Push?3000K/?4000K/5000K/6500K Focus Auto/Manual Aperture Auto/Manual Electronic Shutter Auto/Manual BLC ON/OFF WDR OFF/ Dynamic level adjustment Video adjustment Brightness,Color,Saturation,Contrast,Sharpness,B/W mode,Gamma curve SNR >55dB Input/output Interface Video Interfaces 3G-SDI,LAN ImageCodeStream Dual stream output VideoCompressionFormat H.264, H.265 Audio Input Interface Dual track 3.5mm linear input Audio Compression Format AAC/MP3/PCM audio compression Control Protocol Protocol:VISCA/Pelco-D/Pelco-P;Baud Rate:115200/9600/4800/2400bps HD IP Interface 100M IP port (10/100BASE-TX),SupportVisca protocol control through IP port. Network Protocol RTSP/RTMP, ONVIF Power Interface 5.0 Card line socket (DC12V) Other Parameter PowerAdaptor AC110V-AC220VtoDC12V/1A,POE (for options) Input Voltage DC12V±10% Input Current 400mA(Max) Consumption 4.8W?(Max) Store Temperature -10℃~+60℃ Store Humidity 20% - 95% Working?Temperature -10℃~+50℃ Working Humidity 20%--80% Dimension 155.7mmX70mmX70mm Weight 0.7KG Application Indoor Remote Operation (IP) Remote Upgrade, Reboot and Reset Accessory 12V/1A Power supply,User Manual,Warranty card,brackets(optional)

• Full HD Wide View Angle, Multi-protocols,Multiple Video Interfaces：This series camera offers perfect functions, superior performance and rich interfaces.The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution,and fantastic color rendition.
• Superb High-definition Image：It employs 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920x1080 with e rate up to 30fps.Leading Auto Focus Technology：Leading auto focus algorithm makes lens a fast, accurate and stable auto-focusing.
• Low Noise and High SNR：Low Noise CMOS effectively ensure high SNR of camera video. Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness.
• Multi-Format Video Outputs：Multiple interfaces include:SDI and LAN.The SDI is available for 100m transmission at 1080p30 format.It supports H.264/H.265 encoding which makes motion video fluent and clear even under less than ideal bandwidth conditions.
• Audio input interface：Audio over IP, Not through SDI, Best 20x optical zoom auto focus full ip 1080p webcam for live streaming
