NEMA34 Integrated Servo Stepper Motor with Built-in Encoder,Closed Loop Servo Motion Controller and Driver with Brake,CAN Bus Interface,2000RPM,Max6.5Nm,6A,24-48VDC(UIM8696CMB)
$222.99
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.jobs.innov.ma
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$222.99
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.jobs.innov.ma
Free 30-day returns Details
Product details
| Management number | 220356359 | Release Date | 2026/05/03 | List Price | $89.20 | Model Number | 220356359 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

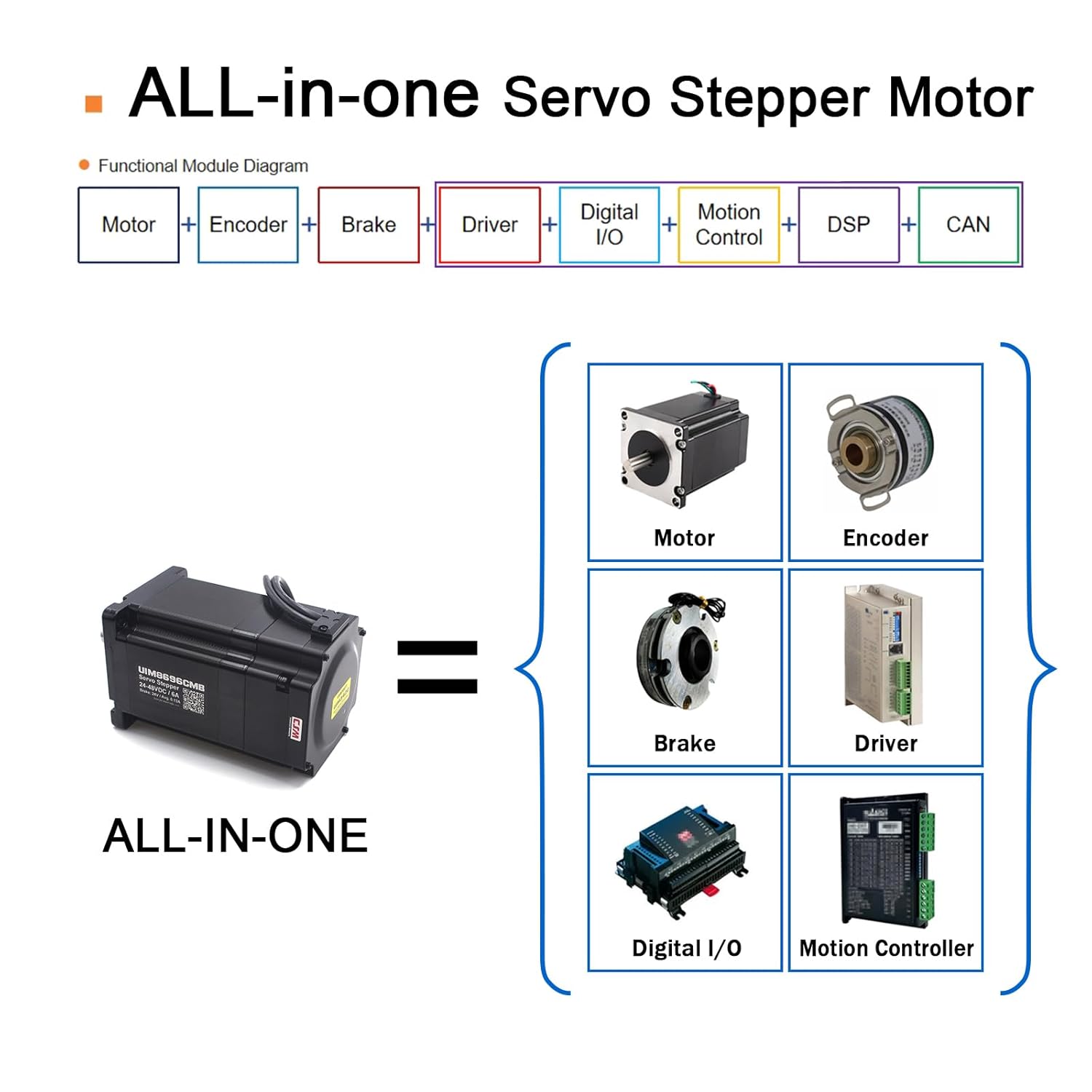

- 【FULLY FUNCTIONAL】 Our high torque stepper motor is a Nema34 (86x86mm), all-in-one CAN interface smart servo step motor that comes with an encoder, motor driver, brake and motion controller. Using the CANBUS protocol, multiple motors can communicate simultaneously to achieve complex motion control.
- 【POWERFUL TECHNICAL SUPPORT】 This Nema 34 stepper motor incorporate robust DSP core and fault tolerance, fail safe user interface, along with free debug/control software and complete SDK, lib, dll and C++, C# example codes.
- 【HIGH TORQUE】 Holding Torque 6.5 N.m, 1-128 micro-stepping, 24-48 VDC supply voltage and 2-6 Amp adjustable current. Running with no vibration/noise and high torque, good substitution of AC/DC servo motor at low speed.
- 【EXCELLENT DESIGN】 Closed-loop motion, high positioning accuracy, fast response, and high speed to 2000 rpm. Supports speed control mode, position control mode, backlash compensation, stall detection, and many other control functions.
- 【LOW NOISE】 This arduino stepper motor comes with 3 inputs, 1 output and 3 trigger modes to suppress the electrical noise. 11 actions can be attached to each input level change. All inputs can generate notification when triggered.
| Model | UIM8696CMB |
|---|---|
| Speed | 2000 RPM |
| Voltage | 48 Volts (DC) |
| Brand Name | UIROBOT |
| Model Name | UIM8696CMB |
| Item Weight | 8.83 Pounds |
| Part Number | UIM8696CMB |
| Manufacturer | UIROBOT |
| Material Type | Aluminum, Metal |
| Included Components | UIM8696CMB Smart Motor |
