On-Car Brake Disc Lathe 110V Non-Disassembly Car Brake Disc Repair Polishing Machine with 17.72'' Processing Diameter & 0.24''-1.65'' Thickness, Brake-disc Resurfacer for Cars and SUVs

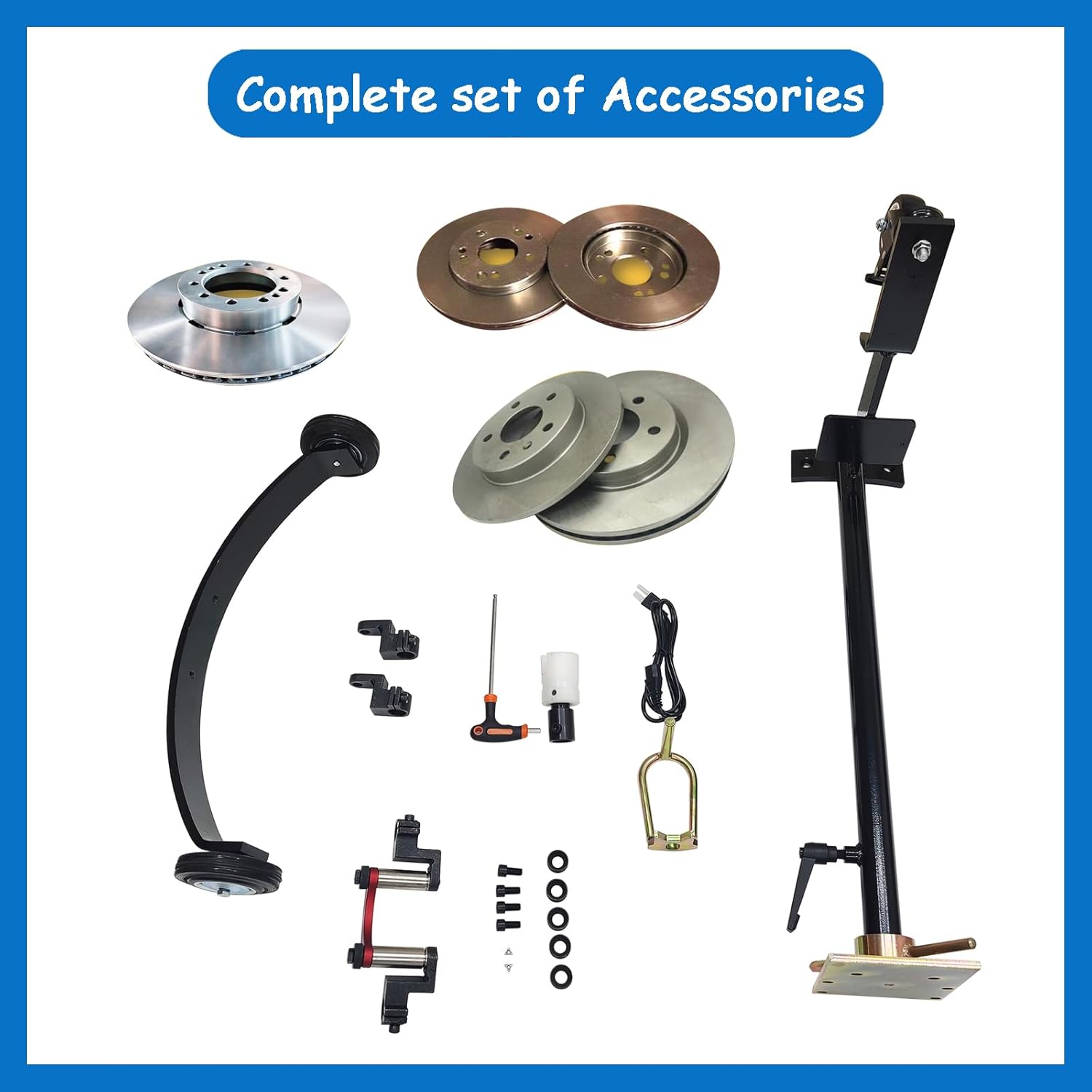

Specification Voltage: 110V 60HZ Power: 850W Rotating speed: 98rpm Max Diameter of Brake Disc: 450mm (17.72'') Thickness of Brake Disc: 6-42mm (0.24''-1.65'') Plane Cutting Accuracy: 0.003mm Repeated Assembly and Disassembly tolerance:＜0.03mm Cutting feed amount: 0.005-0.015mm Feed velocity: 8.5mm/min Operating Height: 1-1.25m (39.37''-49.21'') Working Temperature: -30~60˚C Package included: (022834) 1set Non-disassembly Car Brake Disc Repair Polishing Machine Brake Disc Lathe 110V Operation Method 1: Vehicle Setup: Safely lift the vehicle on a hoist, remove the wheel, check bearing clearance, and install the driver adapter. 2: Brake Caliper: Remove the brake caliper and set it aside safely. 3: Brake Disc Inspection: Clean the brake disc. Ensure its thickness is within the machine's operational range and the disc's specified "min" and "max" limits. Do not resurface discs that are too thin. 4: Mount the Lathe: Position the clamp by hand and secure it with a wrench. 5: Install & Center Lathe: Mount the disc lathe, center it by hand, and tighten the screws with a torque wrench (not exceeding 50Nm). Then, fully secure the clamp with the hex wrench. 6: Install Driver Unit: Adjust the bracket height, connect the driver to the adapter, secure the unit, and press the brake to lock it in place. 7: Setup & Test: Connect the lathe to the driver unit. Turn on the driver, check for stable operation, and manually adjust the feed. Ensure rotation matches the arrow direction and set the cutting depth. 8: Begin Resurfacing: Turn on the disc lathe power, lock the handwheel brake, and begin automatic resurfacing.

• Professional On-Car Brake Disc Repair: This car brake disc repair polishing machine performs precision resurfacing and polishing of brake discs without disassembly, saving time and labor. It effectively eliminates surface wear, scratches and minor warpage, restoring optimal braking performance.
• Robust Power & Wide Compatibility: Equipped with 850W motor, which deliver stable and robust force for polishing. The brake disc lathe can handles brake discs up to 450mm (17.72") in diameter and 0.24''-1.65'' thickness. Compatible with various vehicles, including passenger cars, SUVs, NEVs and light commercial vehicles.
• High Precision & Performance: Achieves a superior cutting accuracy of 0.003mm for smooth and flat finish. This ensures perfect contact between the brake disc and pads, leading to improved braking efficiency, prolonged disc life and reduced replacement costs.

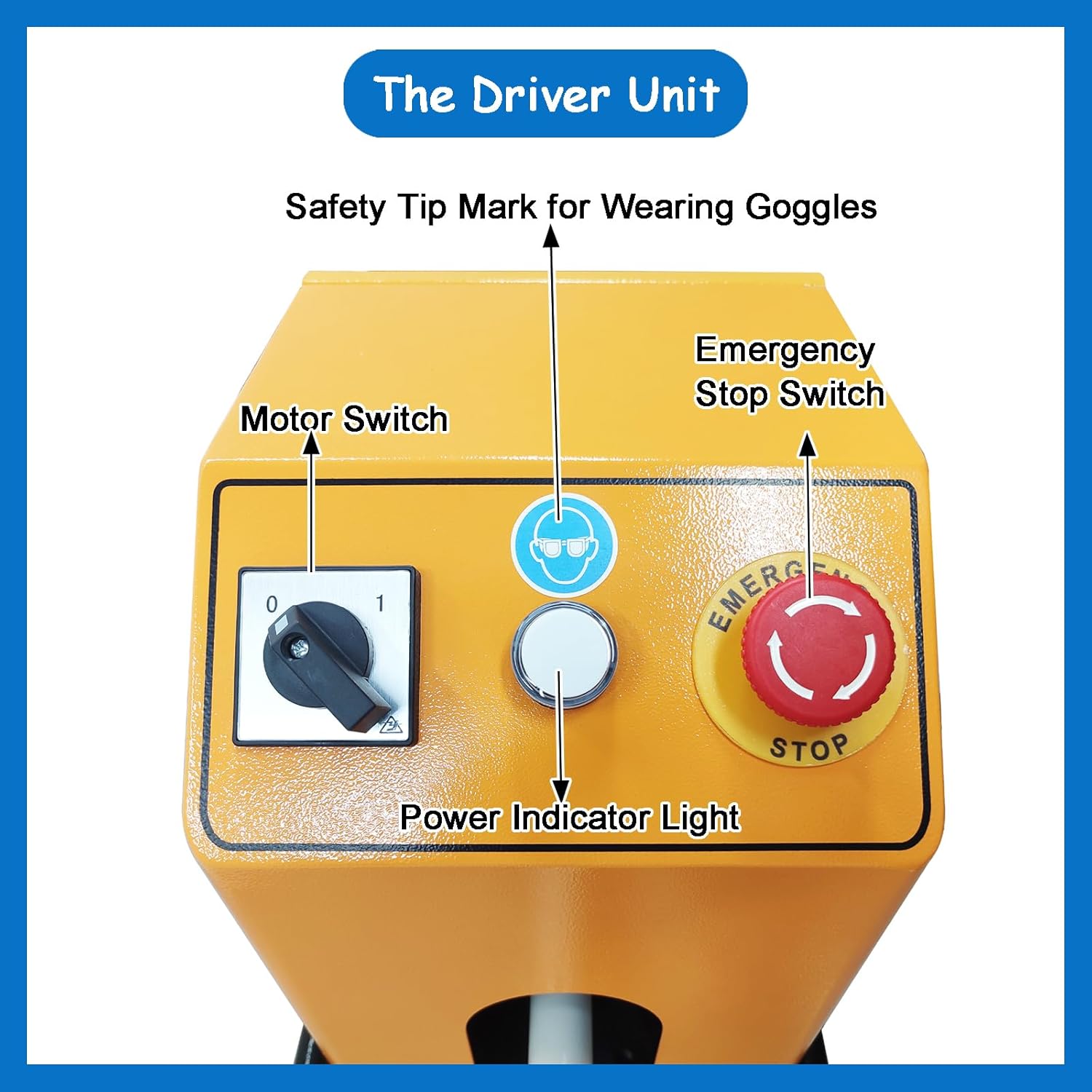

• User-Friendly Design & Easy Operation: This On-car brake disc resurfacing machine features a simple control panel with integrated switches and indicator lights. The adjustable support frame and secure clamping system make setup straightforward, effectively improving operational efficiency and ease of use.

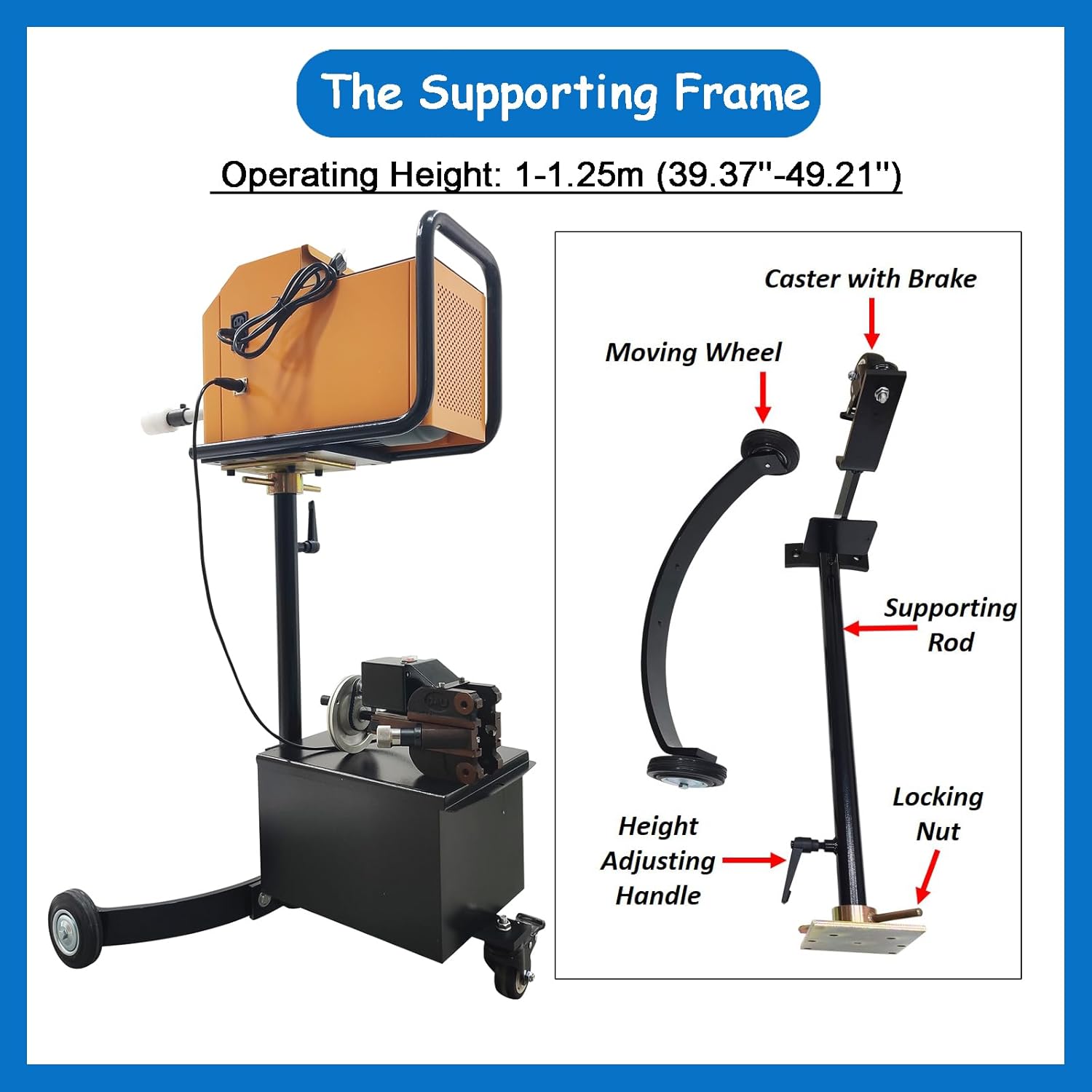

• Integrated Storage Box: Comes with a sturdy rectangular storage box at the base of the frame for organized storage and protection of the lathe and accessories when not in use. This all-in-one design enhances portability.
