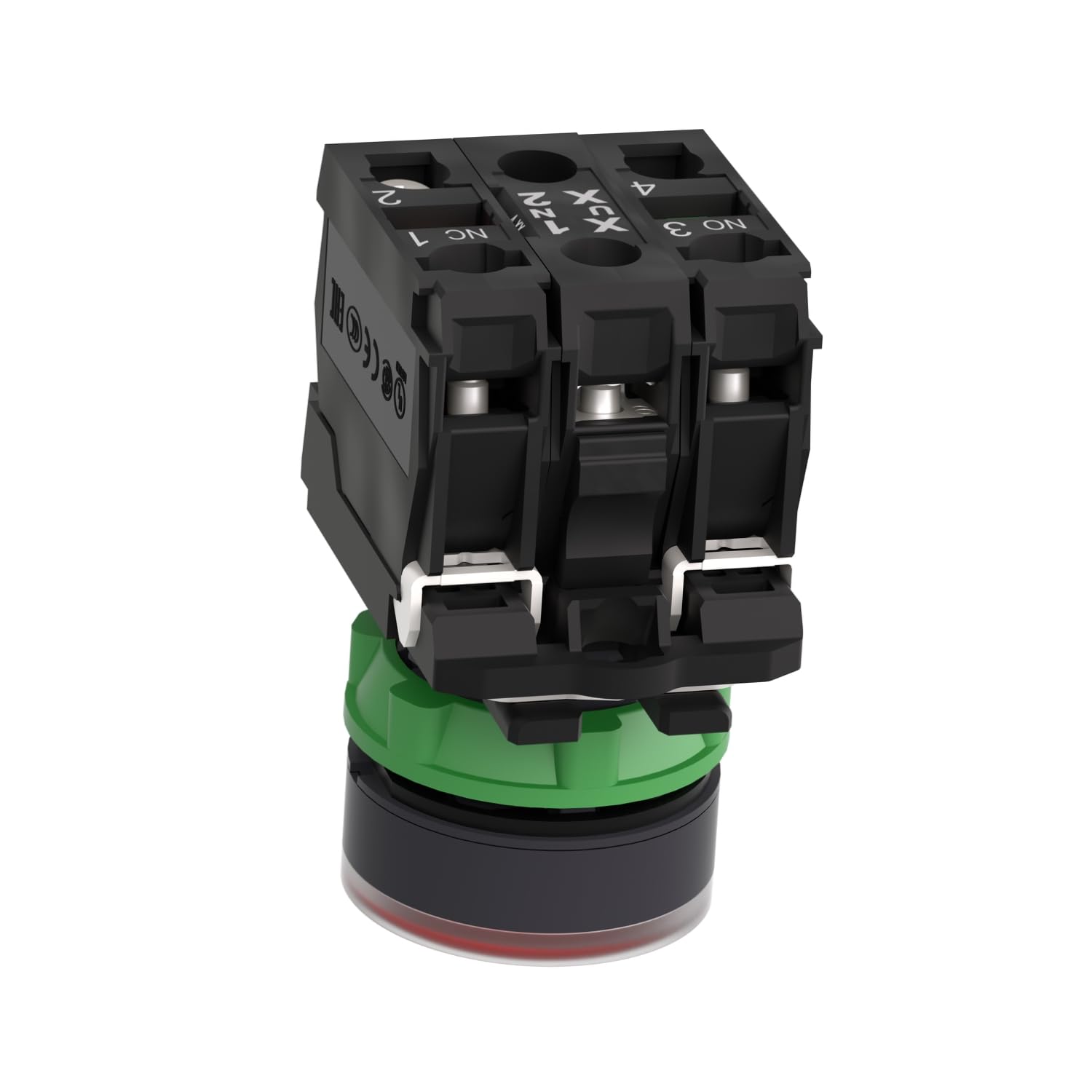

Schneider Electric Harmony XB5AW34B5 XB5 Illuminated Push Button Switch Plastic Spring Return 1NO + 1NC 24V AC/DC 22mm Bracket Flat Mount Red
Product details
| Management number | 221103223 | Release Date | 2026/05/03 | List Price | $14.00 | Model Number | 221103223 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The Harmony XB5 illuminated modular red push button operates with a spring return mechanism, is powered by 24V AC and has an integrated LED and screw terminals. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It easily installs into standard 22mm diameter panel cutouts and connects to control circuits using classic screw terminal connections. Thanks to the bright and long-lasting LED lighting, it is easy to see even from a distance. It is shockproof, dustproof, waterproof and vibration resistant thanks to IP66, IP67, IP69 and IP69K, making it ideal for use in adverse environments. Its plastic bezel makes it ideal for applications that require good resistance to chemical substances and/or double electrical insulation.
- Assembly only by an operator
- Electrical contact low load and high performance
- Single nut attachment (rotating protective plate)
- Assembly by an operator
| Color | black |
|---|---|
| Model | XB5AW34B5 |
| Wattage | 24 watts |
| Terminal | Solder |
| Brand Name | Schneider Electric |
| Unit Count | 1 Count |
| Item Weight | 0.06 Kilograms |
| Part Number | XB5AW34B5 |
| Switch Type | Bipolar Transistor |
| Circuit Type | 1-way |
| Contact Type | Normally Closed |
| Control Type | Manual |
| Manufacturer | Schneider |
| Actuator Type | Push Button |
| Material Type | Plastic |
| Mounting Type | DIN Rail Mount |
| Connector Type | Clamp |
| Control Method | Touch |
| Current Rating | 1 Amps |
| Item Type Name | Illuminated push button, red, flat, 1S+1Ö, touch button, +LED 24V AC/DC |
| Operation Mode | OFF-NONE-ON |
| Controller Type | Push Button |
| Item Dimensions | 3.46 x 1.97 x 1.34 inches |
| Number of Items | 1 |
| Contact Material | Alloy Steel |
| Operating Voltage | 240 Volts |
| Specification Met | CE |
| Compatible Devices | Schneider Electric Harmony XB5AW34B5, 24V DC/AC, 22 mm, Schneider Electric Harmony series |
| Included Components | ILLUMINATED PUSHBUTTON |
| Number of Positions | 1 |
| Warranty Description | 2 year manufacturer |
| Connectivity Protocol | X-10 |
| Lower Temperature Rating | 100 Degrees Celsius |
| Upper Temperature Rating | 1 Degrees Celsius |
| International Protection Rating | IP20 |
| Global Trade Identification Number | 03389110904123 |
