Welding Machine Handheld, Portable ARC Welder Gun, 4600W IGBT Standing Handheld Welding Machine, 6 variable current adjustment, 110V Welder Machine with Welding Tool

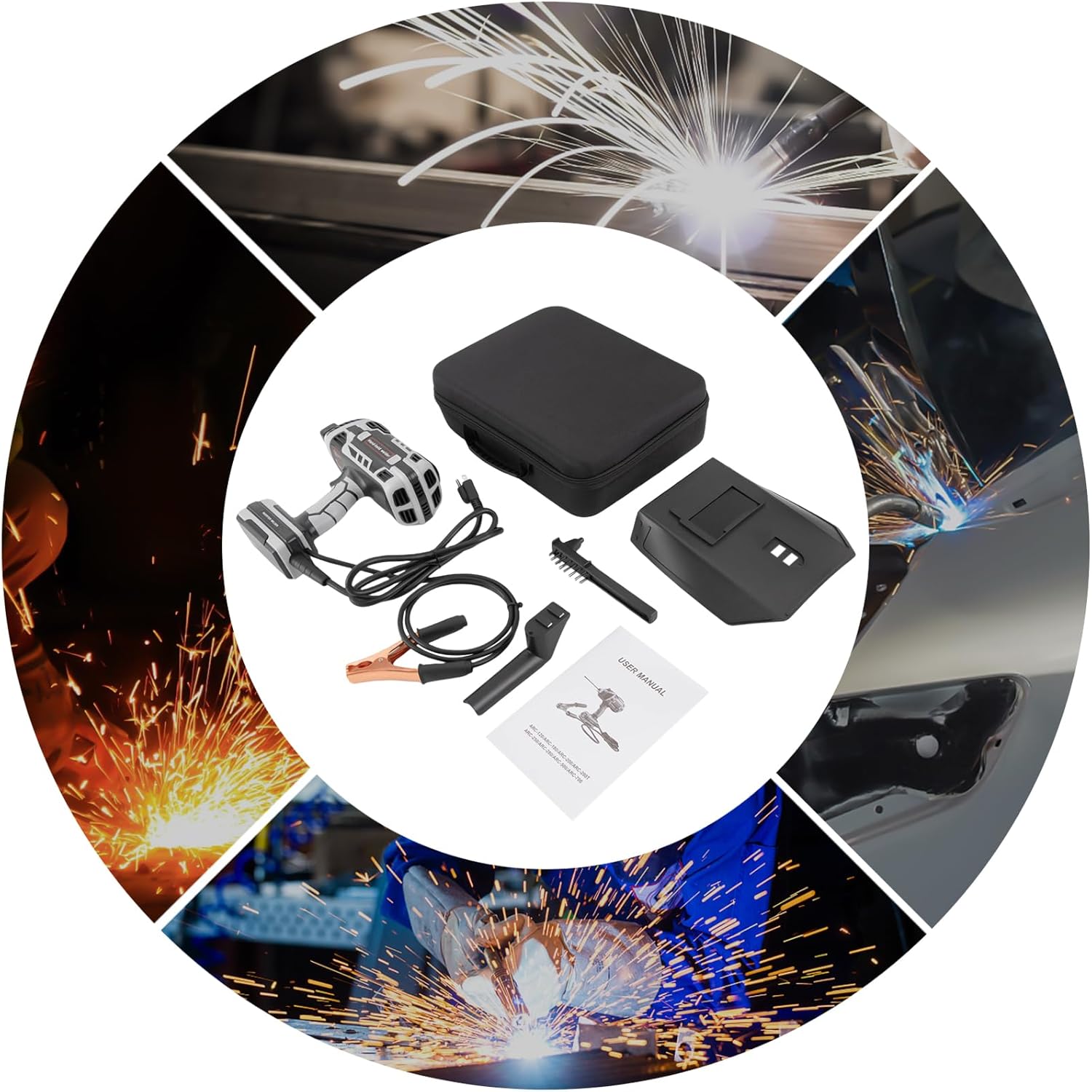

SpecificationModel: ARC-120Color: BlackMaterial: Plastic Style: ModernPlug Voltage: 110VRated Output Voltage: 24.8VOutput Current: 20-120A ((1-Step=20A / 2-Step=40A / 3-Step=60A /4-Step=80A /5-Step=100A / 6-Step=120A) Rated Input Power: 4.6KWEnclosure Protection Grade: IP21Electrode: φ1.6-φ3.2Power Factor: 0.76Insulation Class: FDuty Cycle at 40℃/104℉: 20%Working Temperature: -10~40℃/-50~104℉Efficiency: About 85%Power Type: Plug-inPlug: American StandardNet Weight: 2kg/4.41lbsGross Weight: 2.4kg/5.29lbsPackage Size: 25*20*10cm/9*7*3inchToolbox Size: 37*25*12cm/14.6*9.9*4.7inchSuitable Welding Rod Diameter: 2.5mm/0.09inchPackage Included1* Hand-held Welding Machine1* Clip1* Steel Brush1* Toolbox1 Set* Protective Masks1* English ManualNotes1. Please make sure the heat dissipation holes are uncovered and unblocked. Good ventilation is of critical importance to the normal performance and service life of the machine. 2. Please keep hands, hair, and tools away from the cooling fan to avoid personal injury or machine damage. The minimum distance between the machine and nearby objects should be 30cm/11inch. 3. Clean the dust periodically with dry and clean compressed air. If welding in an environment with heavy smoke and pollution, the machine should be cleaned daily. The pressure of compressed air should be at a proper lever lest the small parts inside the machine will be damaged.4. Please avoid rain, water, or vapor infilter the machine. Only when there are no abnormal phenomena can welding be continued.5. Check periodically whether the inner circuit connection is ok (esp. plugs). Tighten the loose connection. If there is oxidization, remove it with sandpaper and then reconnect. Check periodically whether the insulation skin of all cables is in a good station. If there is any dilapidation, wrap it or replace it.6. Put the machine into the toolbox in a dry location if it is not to be used for a long time.7. Please read the manual completely before installation and use, and pay particular attention to the safety instructions included. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.

• 【Efficient&Energy-saving】: It has a maximum power of 4600W to achieve fast welding, saving you lots of time. In addition, it has a high efficiency of about 85%, saving you lots of electricity
• 【IGBT Inverter Technology】: The unique control method of IGBT inverter technology ensures a stable arc and easy arc starting with less spatter, stable current, and stick resistance, which guarantees beautiful and flat welding points

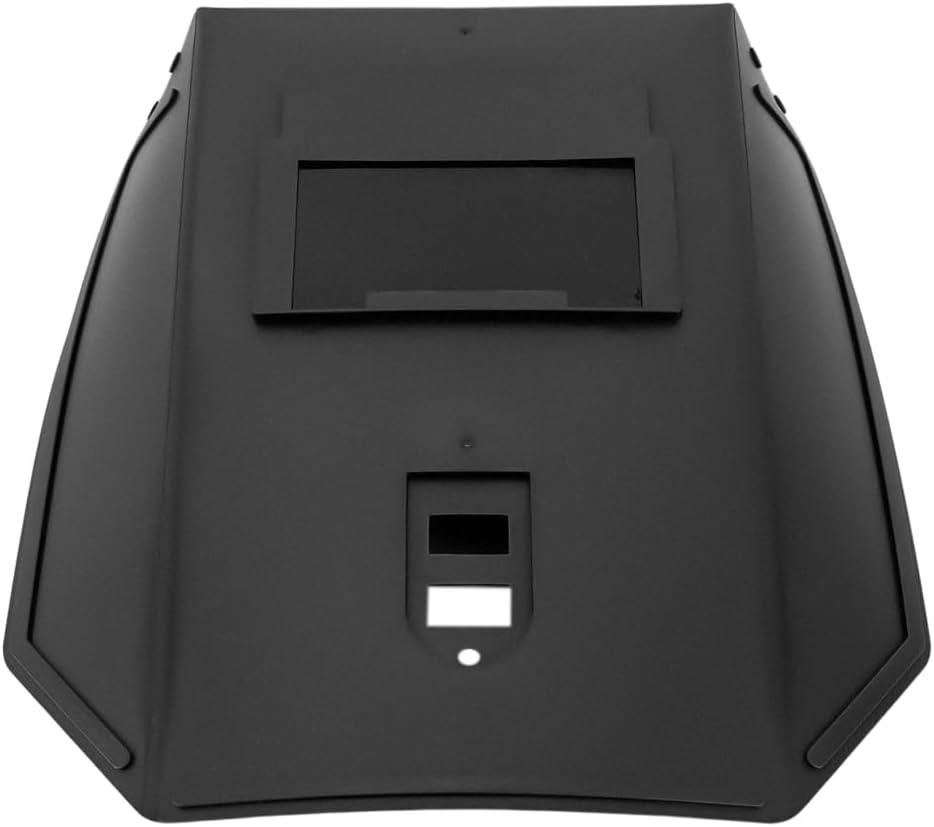

• 【High Safety】: The high enclosure protection grade (IP21), high insulation class (F), overload protection, and overheat protection can enhance the safety of use. Meanwhile, a set of protective masks in the package can prevent sparks from splashing on the face during the welding process
• 【Adjustable Output Current】: It uses an imported chip to automatically identify and match welding rods. All you need to do is turn the compass on the top to adjust the 6-step current (20A/40A/60A/80A/100A/120A) for a variety of welding mode applications, which is newbie-friendly
• 【Excellent Heat Dissipation】: The built-in cooling fan and heat dissipation holes on the side of the product can dissipate heat in time and prolong the service life of this product
