ZK-PP1K Dual Mode Signal Generator PWM 1-Channel 1Hz-150KHz PWM Pulse Frequency Duty Cycle Adjustable Square Wave Generator

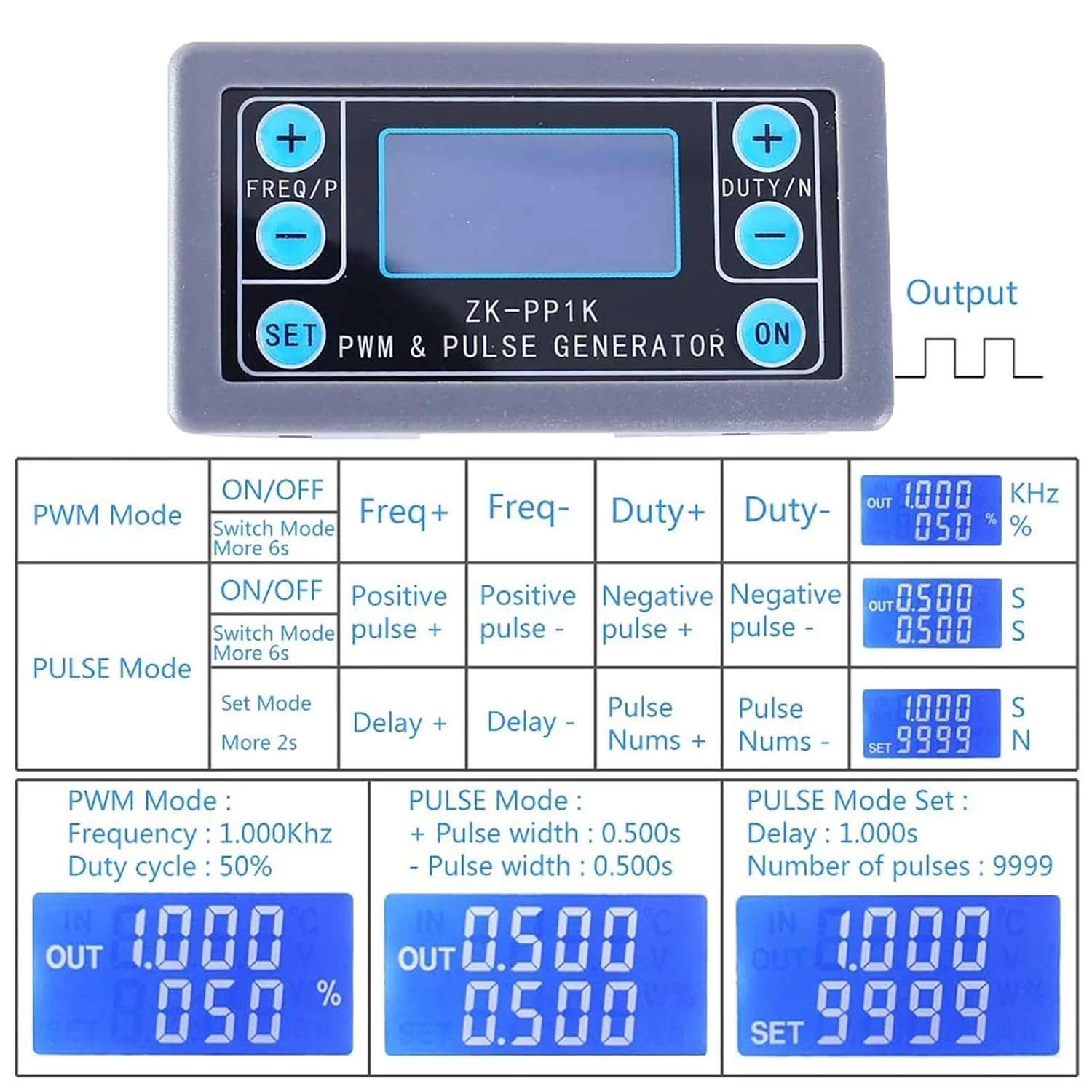

Digital Signal ProcessorsZK-PP1K PWM Pulse Dual Mode Signal Generator PWM 1-Channel 1Hz-150KHz Frequency Duty Cycle Adjustable Square Wave GeneratorDescription:This signal generator is a device that provides electrical signals at a variety of frequencies, square wave, pulse and output levels. It supports dual mode: PWM mode and PULSE mode. It is used as a signal or excitation for testing. Widely used in production practice and technology.Feature:Dual mode: PWM mode and Pulse mode high definition displaySupport frequency adjustmentSupport duty cycle adjustmentHigh precision detectionSupport power-down memory function1-Channel signal outputSupport reverse protectionSupport enabled/disabled outputParameter:Model: ZK-PP1KWork voltage: DC 3.3V -30VFrequency range: 1Hz~150KHzFrequency accuracy: 2%Duty cycle range: 0.00%-100%<;30mANumber of pulses: 1~9999 or InfiniteDelay time: 0.000s~9999sPulse width: 0.000s~9999sTime accuracy: 1msOutput amplitude: Same to input voltageWork Temperature: -20 -85Work Humidity: 0% -95%RHSize: 79*43*26mApplication Scenario:1.PWM signal generator, square wave rectangular wave signal generator.2.Used to generate a square wave rectangular wave signal, which is supplied to a DC motor or a stepper motor driver; Stepper motor, servo motor, electricgripper, robot arm.3.It can combine with the driver to realize dimming, speed regulation, control solenoid valve, etc. But it can't directly drive loads such as electric lights, motors,and solenoid valves.Package Included:1 x ZK-PP1K PWM Pulse Dual Mode Signal Generator==========Battery Included : NoHigh-concerned chemical : NoneModel Number : ZK-PP1K Dual Mode Signal GeneratorDIY Supplies : ElectricalCertification : Display Size : 2.9 Inches & Under
